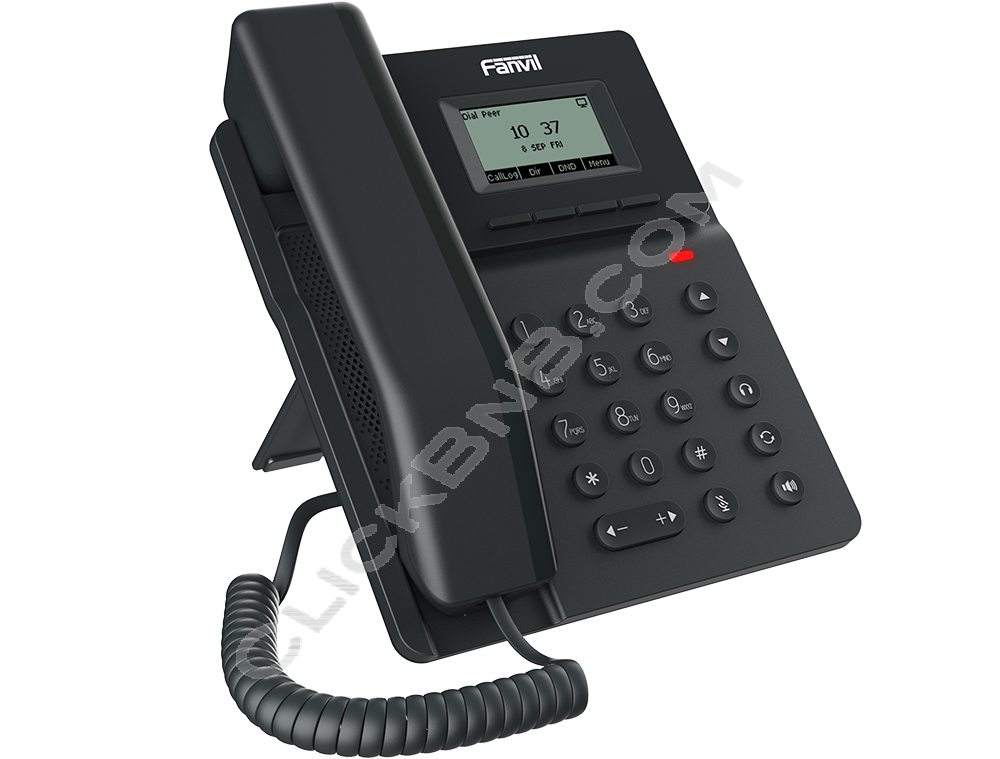

Fanvil V50P - Basic Level IP Phone

Fanvil V50P Basic Level IP Phone

V50P is a stylish, high-performance entry-level IP phone with a 2.3-inch 132x64 pixel dot-matrixscreen,support for 2 SIP lines and 6-way audio conference, support PoE power supply, and HDvoice. It canmeettheapplication scenarios of different enterprises, and provide users with excellent interactionandcomfortableinstant Internet communication experience.

Fanvil V50P - Technical Specifications

Generic

• 2 SIP lines
• HD Voice
• PoE Enabled
• Handset / hands-free / headset mode

• 2.7-inch (192x64) graphical LCD
• Handset / Hands-free / Headset mode
• Desktop Stand / Wall-mounted (optional)
• Optional External Power Supply
• Handset with Hall-effect Sensor Switch

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 1000 entries)
• Blocked List / Allowed List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable Soft keys
• Network Time Synchronisation
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL/Active URI
• uaCSTA
• XML Browser
• Customize Incoming Call Ringtone
• Time Plan (timed reboot/timed forward/timed upgrade/timed config)
• Hidden DTMF
• Ring From Headset

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)/Ban anonymous call
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• BLF
• Redial/Predial
• Call back
• Do-Not-Disturb (DND)/Timed DND
• Auto-Answering
• SIP SMS
• Voice Message (on server)
• 6-way Conference
• Hot Line
• Hot desking
• Direct IP call without SIP proxy
• Fuzzy search call
• Action call
• Dial Plan
• Call completion/audio redial
• Primary and backup SIP servers
• Default Ext. Line
• Multicast

Audio

• HD Voice : HD handset, HD speaker
• Wideband ADC/DAC 16KHz samping
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)/Automatic Gain Control(AGC)
• Packet loss concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO
• VQM Voice Quality Monitoring

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IpV6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DNS-SRV (RFC 3263)
• Support Redundant Servers
• Agent
• Https Mutual Authentication

Protocols

• SIP v.1 (RFC2543) v2(RFC3261)
• UDP/TCP/TLS
• RTP/RTCP/SRTP（Optional/Compulsory）
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Screenshoot
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog
• Network firewall

Physical Specifications

• LCD: 132x64 pixel dot-matrix screen
• Keypad: 24 keys, including
  - 4 Soft-keys
  - 3 function keys (Mute/Headset/Redial)
  - 2 Navigation keys
  - 1 Handsfree Key
  - 12 Standard Phone Digits key
  - 2 Volume Control Keys Lower/Increase (Left/Right)
• HD Handset (RJ9) x1
• Handset with Hall Switch
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Desktop Stand x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Security Slot x1
• Power : DC5V/1A or PoE (POE complies with the IEEE802.3af standard ; Power adapter: Input:100-240VAC~50/60Hz Output:5V/1A)
• Power Consumption(Adapter): 0.9~1.8W
• Power Consumption(PoE): 1.4~2.5W
• Working Temperature: 0 ~ 45℃
• Working Humidity: 10 ~ 95%
• Installation:
  - Desktop Stand
  - Wall-Mounted (optional)
• Colour: Dark Grey
• Qty/CTN: 10pcs
• N.W/CTN: 8.25 kg
• G.W/CTN: 8.785kg
• Gift Box Dimensions: 250 x 220 x 55mm
• Outer CTN Dimensions: 460 x 300 x 270mm (10 PCS)
