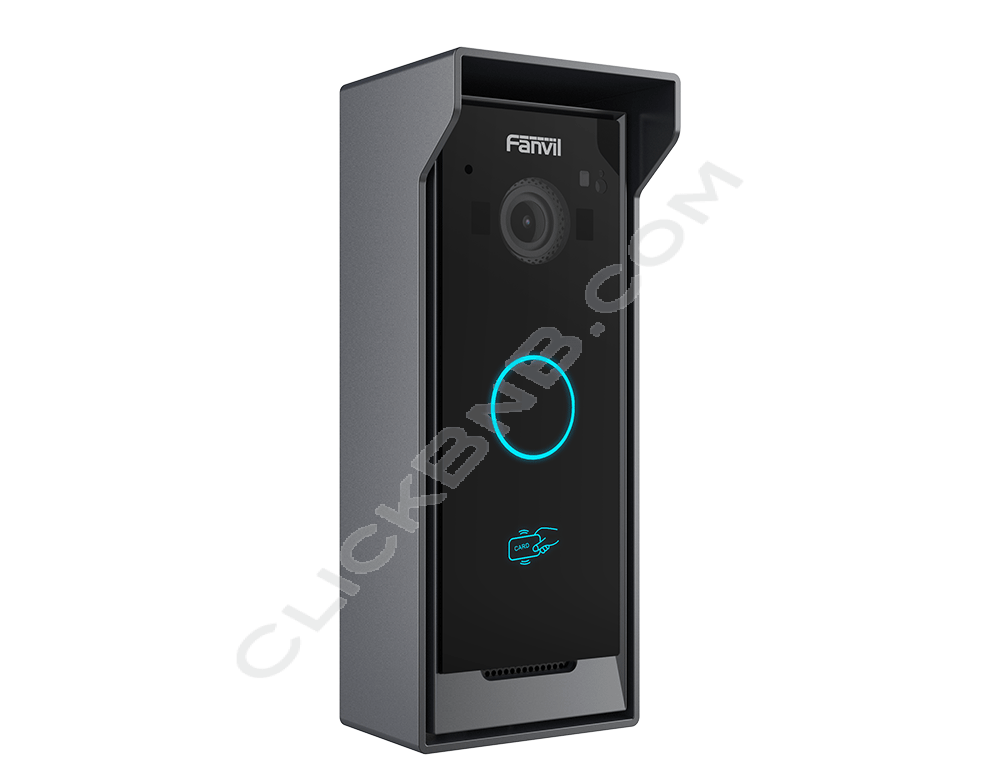

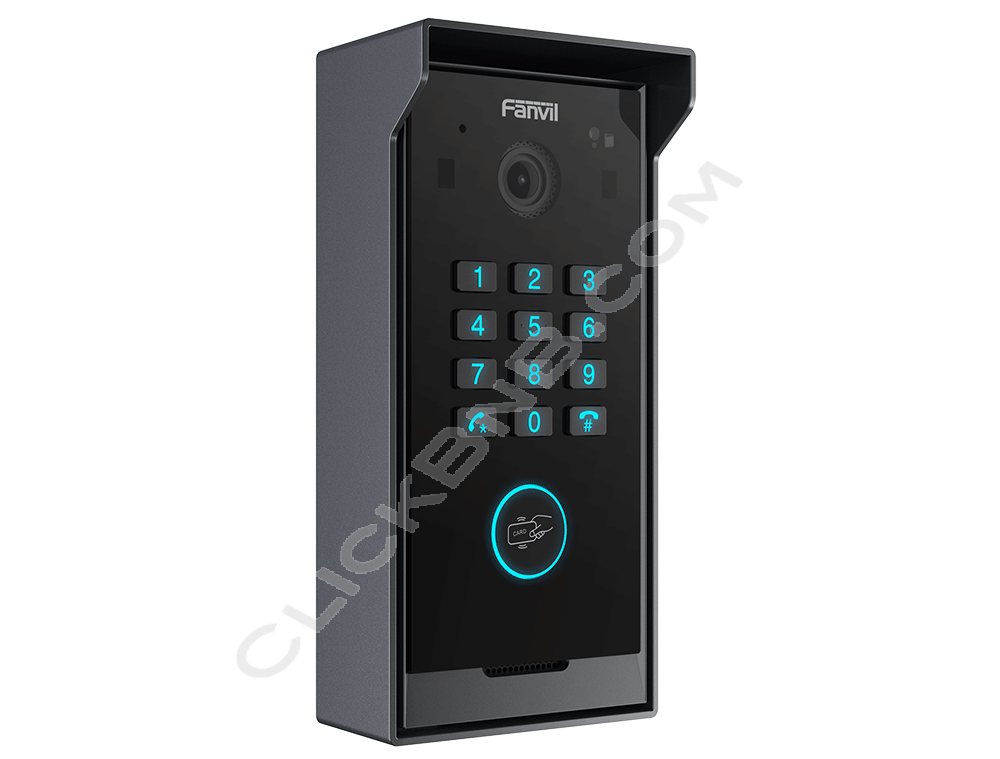

Fanvil i60K - Technical Specifications
Device Functions
- Panel Type: Multi-apartment, Community, Villa
- Keyboard: 1 speed-dial button and a numeric keypad
- Body: ABS+PC
- Colors: Panel: black, Housing: Gunmetal
- Sensor: 1/2.9-inch，CMOS
- Camera: 2 Mpx, Support infrared
- Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
- Output video: H.264 (Baseline, Main Profile)
- Light Sensitivity: 0.1Lux
- Card Storage: 1,0000
- Power Consumption: PoE:1.63~6.93W, Adapter: 1.51~6.16W
- Power Supply: DC 12V / 1A, PoE 802.3af Class 3
- Working Temperature: -40℃~+70℃
- Storage temperature: -40℃~+70℃
- Size of the Panel: (LWH) 70.7*149.7*30mm
- IP / IK Level: IP65
- Installation: Wall-mounted, Rain cover
Functional Capabilities
- Supported Protocols: SIP 2.0 over UDP/TCP/TLS
- Lock Opening: IC Card，By DTMF Code，Remote Door Opening, Password，BLE
- Interface: Wiegand Input/Output, Short Circuit Input/Output
- Supported Wiegand: 26, 34 bit
- Supported ONVIF Types: Profile S
- Supported Standards: DTMF, IC Card, Indoor Switch, BLE/ Cards 13.56 MHz
- Talking Mode: Full duplex (High-definition Audio)
- Additionally: Built-in relay，Motion detection，Tamper Alarm，TF Card，Open API
