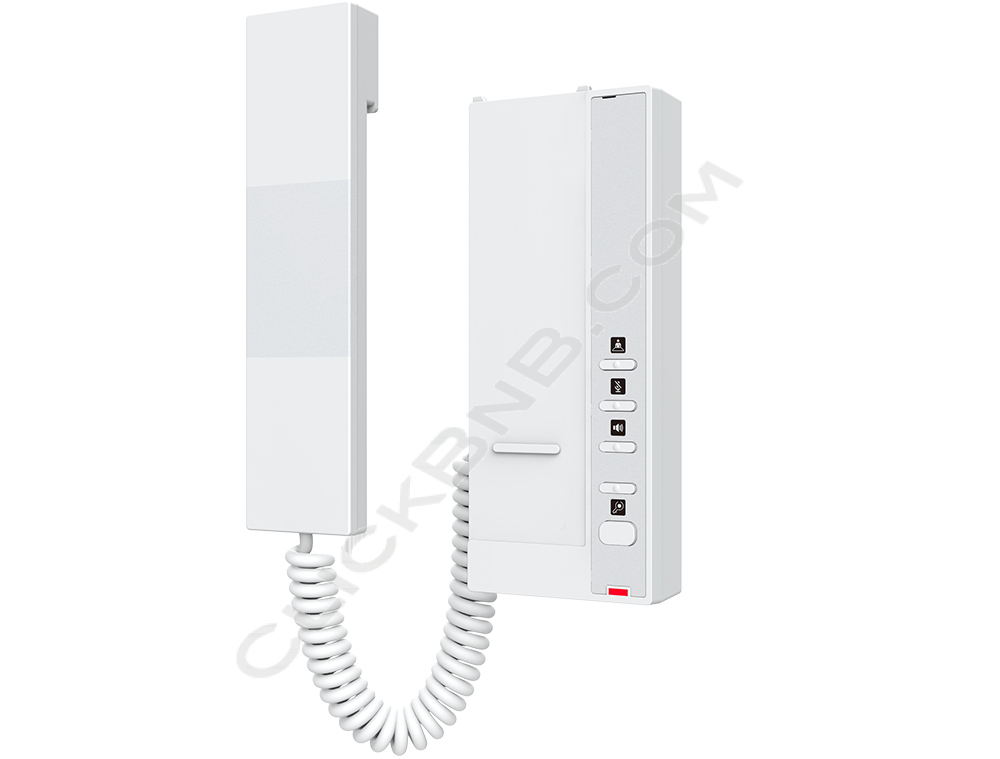

Fanvil i501W - WiFi SIP Indoor Station

Fanvil i501W SIP Indoor Station Technical Specifications

Panel type

• Community
• Hotel
• Villa

Body

• ABS

Speaker

• 1W

Wi-Fi

• 2.4G/5G, support wifi 6

 Interface

• 1×Short circuit intput

Network

• 10/100 Mbps adaptive

Power Supply

• DC 5V / 1A

Power Consumption

• Adapter: 0.9~1.7W

Working Temperature

• 0℃~50℃

Storage Temperature

• -20℃~50℃

Working Humidity

• 10%~90%

Size (LWH)

• 195x181x30mm

Installation

• Desk & Wall-mounted

Functional Capabilities

• Supported Protocols: SIP 2.0 over UDP/TCP/TLS

Audio

• Narrowband audio codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC
• Broadband audio codec: G.722, OPUS
• Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)

DTMF

• In-band, out-of-band DTMF (RFC2833), SIP Info

Do Not Disturb (DND)

• Supported, and the time can be user-defined

Additionally

• Supports customizing incoming call ringtones
• Supports remote door unlocking

Packaging

• N.W/CTN: 8.28 Kg
• G.W/CTN: 8.925
• Gift Box Dimensions : 105 x 58 x 266 mm
• Outer CTN Dimensions : 340 x 315 x 285 mm (15 PCS)
