Detil

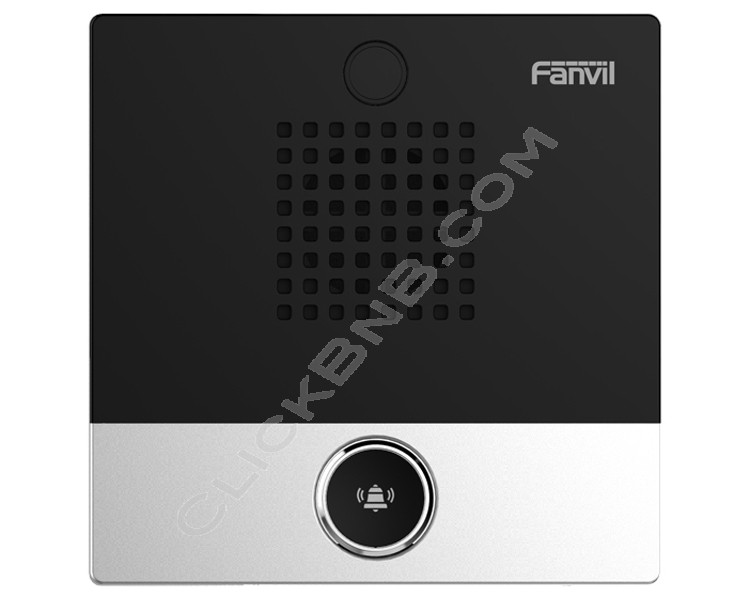

Fanvil i10 SIP Mini Intercom (i10)
The Fanvil i10 is designed for indoor scenes with IP54 waterproof and dustproof. Supports wall mounting and 86mm wall socket installation. It combines security, audio/video intercom and broadcasting functionalities and offers the qualified communication solution for users.
Fanvil i10 Key Features
- IP54 waterproof and dustproof
- -20 °C to 50 °C wide range temperature adaptability
- Compatible with engineering 86 box size, easy installation and configuration
- Built-in 1W speaker and Acoustic Echo Canceller (AEC)
- Built-in 1short circuit input/output interface
- Functionality including security, intercom and broadcasting
- Online management and upgrade
- High compatibility – Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Audio
The Fanvil i10 has a built-in 1W speaker with Acoustic Echo Canceller.
Multi-Protection design
The i10 boasts waterproof and dustproof grade IP54 and a wide temperature range from -20℃ to 50℃. This means it can satisfy the special demands in some of the most challenging industries.
Functionality
The i10 includes fuctionality such as security, intercom and broadcasting.
High Compatibility
The i10 is compatible with multiple major platforms
The Fanvil i10 has a built-in 1W speaker with Acoustic Echo Canceller.
Multi-Protection design
The i10 boasts waterproof and dustproof grade IP54 and a wide temperature range from -20℃ to 50℃. This means it can satisfy the special demands in some of the most challenging industries.
Functionality
The i10 includes fuctionality such as security, intercom and broadcasting.
High Compatibility
The i10 is compatible with multiple major platforms
Fanvil i10 Technical Specifications
General
- 2 SIP Lines
- Auto answer
- Intercom function
Intercom Function
- Dynamic multicast function
- Support ONVIF
- Support customised DSS keys
- Network Time Synchronisation
- Action URL / Active URI
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec: G.711a/u, G.729AB, AMR, iLBC
- Wideband Codec: G.722, AMR-WB, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Deployment and maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Networking
- Physical: 10/100 Mbps Ethernet
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specification
- i10/i10V :1 DSS button (speed dial button)；i10D:2 DSS button
- 1 RJ45 port
- 1 short circuit input interface
- 1 short circuit output interface
- Power: DC12V/1A or POE
- Housing material: ABS
- Installation: Indoor installation
- Working temperature: -20 ~50 °C
- Storage temperature: -20 ~ 50 °C
- Relative humidity: 10% - 90%
- Equipment size: 88 x 88 x 31mm
- Packing size: 95x108x40mm
- Equipment weight: 135g
