Fanvil FH-S01 SIP Ceiling Speaker

Stok: Tersedia

Rp 5.204.512,00

Qty:

Sinopsis

Fanvil FH-S01 is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.

Additionally, it is compliant with the standard SIP 2.0 (RFC3261) and related RFC protocols, making it highly compatible and able to easily scale to meet the needs of any system.

Fanvil FH-S01 Key Features

All-in-one audio codec, amplifier, and speaker

High-intellegibility with G.722 & OPUS Codecs

Up to multicast zones with prioritisation

Audio power up to 20W with built-in class D amplifier

Support talkback with built-in microphone

Customize the WAV file for emergency notification and alarming

Linkage with security alarming devices

Support remote configuration via web page and auto-provisioning

10/100 Mbps Ethernet, Integrated PoE(IEEE 802.3af, class 0)

Ideal for school, office, station, retail, factory, etc.

All-In-One Functionality

Integrated coaxial driver, built-in digital signal processor and digital amplifier, plug & play when connecting to PoE.

Talkback

With a built-in omnidirectional microphone, users are able to talk with the caller.

Emergency Notifications

The FH-S01 provides flexible connections to the emergency button, smoke sensor and door sensor according to your needs.

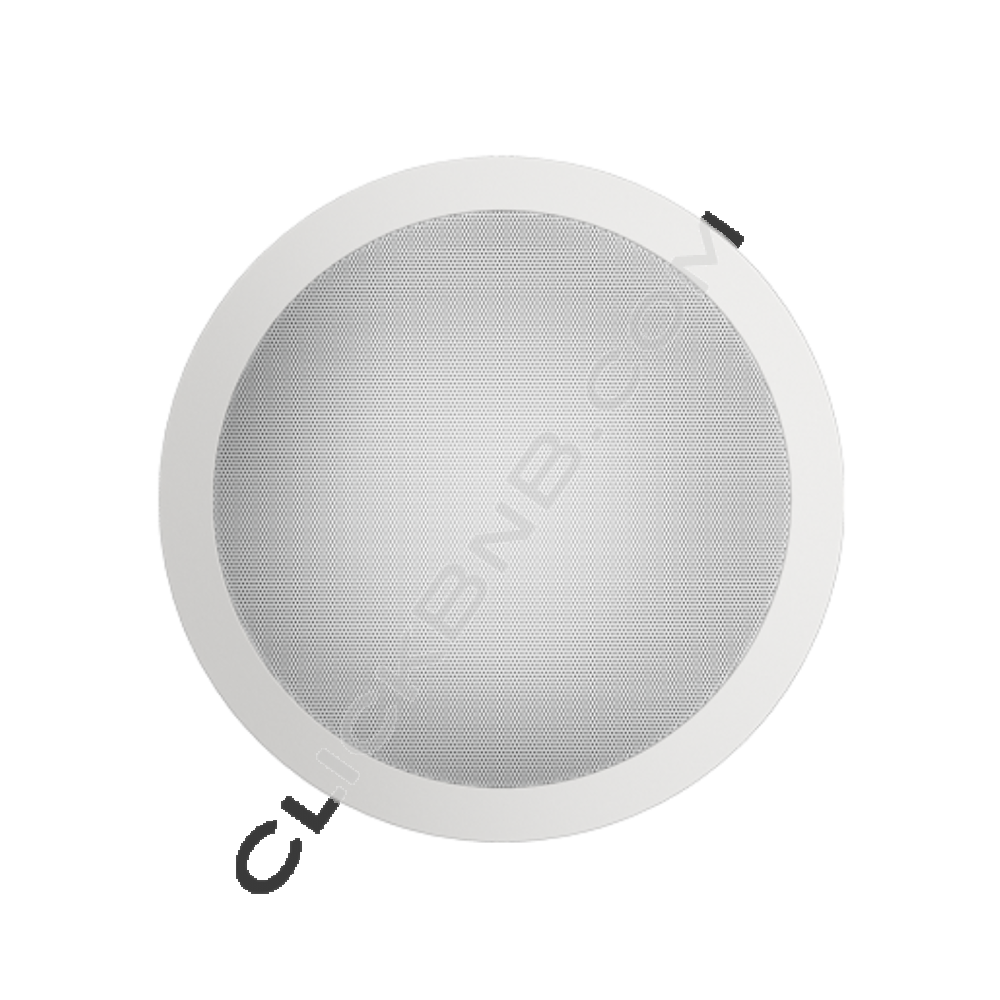

Fanvil FH-S01 SIP Ceiling Speaker

Klik-ganda gambar di atas untuk melihat ukuran aslinya

Gambar Selengkapnya

Detil

Fanvil FH-S01 - Technical Specifications

Generic

2 SIP lines
Ceiling installation
MP3 broadcasting
10 multicast zones
Talkback application
Link with security alarm device
PoE enabled
Support DC power supply

Device Functions

Auto-answering
Network time synchronization
Web page volume adjustment
Dynamic multicast function
Support recording (through server)
Action URL / Active URI

Audio

Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K,G.722, Opus
Speaker:
- Frequency response:100-20KHz
- Sensitivity:89dB±3dB 1m/1W
- Impedance:8Ω
- Audio Power: PoE/10W,12V/10W,18V/15W,24V/20W ; related to power supply voltage.
Mic:
- Omni-Directional
- Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage2V

Network

10/100 Mbps
Network mode:IPv4/IPv6/IPv4&IPv6
IP Setting:Static IP / DHCP / PPPoE
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS

Protocols

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPnP/TR-069
Web management portal
Web-based Packet-dump
Configuration export / import
Firmware upgrade
Syslog

Physical Specifications

DC port x1: DC power input
- Port:2 Pin terminal socket
RJ45 port x1: connect the network
- Power over Ethernet(IEEE 802.3af, class 0)
Short circuit input and output port x1(built in relay)Blue LED x1:Power status
- Relay:MAX DC30V/2A
- Port:terminal socket
DC power input: DC 12~24V/2A
Working temperature: -20℃~ 50℃
Storage temperature: -30℃~ 60℃
Working humidity: 10~95%
Installation: Ceiling-mounted
Color: White
Device overall dimensions: 238.5mm x 238.5mmx 148.3mm
Device back box dimensions: 202.5mmx 202.5mmx 139mm
Gift box dimensions: 270mm x 270mmx 188mm
Outer CTN dimensions: 560mm x 283mmx 410mm(10PCS)
