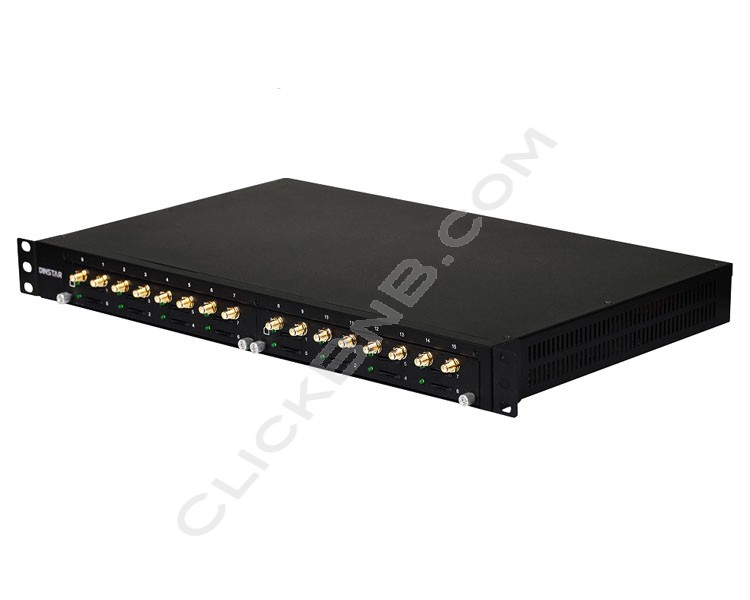

Dinstar UC2000-VF-16T GSM/LTE VoIP Gateway

Dinstar UC2000-VF-16T - Technical Specifications

Hardware Interfaces

• Mobile: 16 Channels
• SIM Card slots: 16
• Antennas Connectors: SMA
• Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45
• LED Indicators: Power, RUN, Channel indicator
• Console: 1* RS232 (USB-B connector)
• RST/PWR Button

VoIP & Media

• Protocol: SIP v2.0, RFC3261
• SIP UDP/TCP/TLS
• RTP/SRTP
• Codecs: G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation
• Dynamic Jitter Buffer
• DTMF: RFC2833, SIP Info
• Call Progress Tone Generation
• Programmable Gain Control
• NAT: STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

• UC2000-VF-16G: GSM Gateway: 850/900/1800/1900MHz
• UC2000-VF-16W: WCDMA Gateway with two options
• A: WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
• B: WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

• Type A:
  - FDD: B2/B4/B12
  - WCDMA: B2/B4/B5
• Type E:
  - FDD:B1/B3/B5/B7/B8/B20
  - TDD: B38/B40/B41
  - WCDMA: B1/B5/B8
  - GSM:900/1800MHz
• Type V: FDD:B4/B13
• Type J:
  - FDD:B1/B3/B8/B18/B19/B26
  - TDD:B41
  - WCDMA:B1/B6/B8/B19
• Type AU:
  - FDD:B1/B2/B3/B4/B5/B7/B8/B28
  - TDD:B40
  - WCDMA: B1/B2/B5/B8
  - GSM: 850/900/1800/1900

Software Features

• Mobile to VoIP, VoIP to Mobile
• SIP Trunk and Trunk Group
• Caller/Called Number Manipulation Rules
• SIP Codes Mapping
• White/Black List
• PSTN Hotline
• VoIP Hotline
• Abnormal Call Monitor
• Minutes Limitation for Ports/Single Call
• Balance Check
• Low Balance Alarm
• Auto Update SIM Number
• Random Call Interval
• Auto CLIP Routing
• Signaling & RTP Encryption(DBO)
• Auto SIP Account
• PPTP/L2TP/OpenVPN

Mobile Features

• SMS/USSD/PIN
• Encoding: Unicode/ASCII
• HTTP API for SMS
• SMPP for SMS
• Polarity Reversal
• CID/CLIR
• SMS Send and Receive
• SMS to Email
• Email to SMS
• Auto SMS/Call Generation
• Call Waiting/Call Back
• Call Forward
• Call Conference
• GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Maintenance

• Web/Telnet Configuration
• Configure Backup/Restore
• Firmware Upgrade by HTTP
• Factory Reset
• CDR (10000 CDRs Storage Locally)
• Syslog/Filelog
• Ping and Tracert
• Traffic statistics: TCP,UDP,RTP
• VoIP Call Statistics
• PSTN Call statistics: ASR,ACD,PDD
• Voice Diagnose with Loopback
• IVR Customisation
• SIP/RTP/PCM Capture
• SIMCloud Management
• Centralised Management(DMS)

Physical Features

• Power Supply: 100-240V,50- 60Hz@DC12V4A
• Power Consumption: 38w
• Temperature:
  - Operation: 0 ℃ ~ 40 ℃
  - Storage: -20 ℃ ~80 ℃
• Operation Humidity: 10%-90%
• Dimension(W/D/H): 440x270x44mm
• Unit Weight: 3.7kg
