Dinstar DAG1000-2O - 2 FXO Analog VoIP Gateway

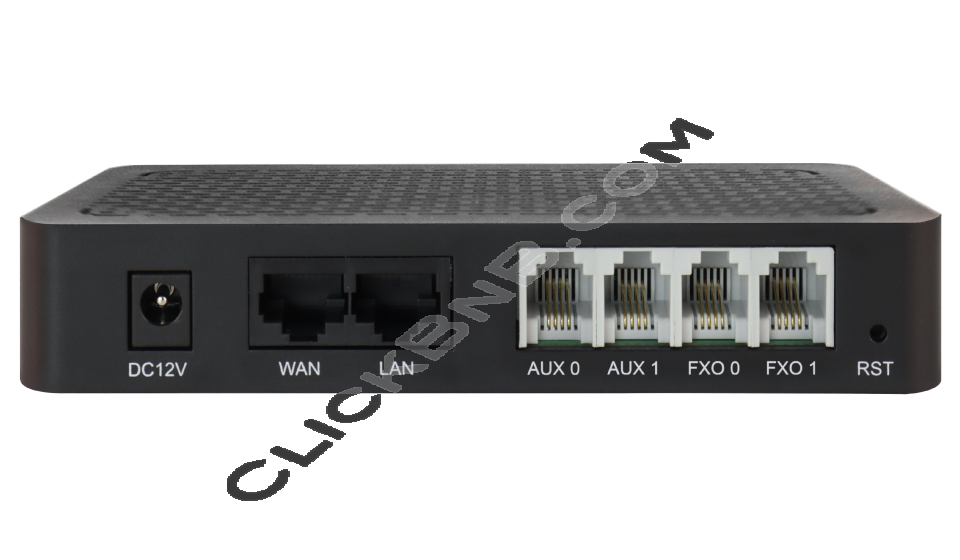

Physical Interfaces

• DAG1000-2O, 2 FXO, RJ11
• 1 X WAN, 10/100Mbps, RJ-45
• 1 X LAN, 10/100Mbps, RJ-45

FXO

• Connector: RJ11
• FAS
• Caller ID : FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection

• No Current Detection

• Call Detection: BellcoreType 1&2, ETSI, DTMF
• Dial Mode: DTMF/Pulse Dialing

• AC/DC Impedance Configuration

Voice & FAX

• Modem/POS

• VLAN 802.1P/802.1
• Layer3 QoS and DiffServ
• T.38/Pass-through

• Comfort Noise Generation(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation(G.168), with up to 128ms

• Adaptive (Dynamic) Jitter Buffer

• Programmable Gain Control

• Audio Codec: G.711A/U law, G.723.1, G.729A/B, G.726
• DTMF mode: Signal/RFC2833/INBAND

VoIP

• Protocol : SIP v2.0 (UDP/TCP),RFC3261, SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311 ETC (3GPP TS24.629), RFC3891, RFC3892
• SIP Trunk
• SIP TLS/SRTP
• RTP/RTCP, RFC2198, 1889
• RFC3266 IPv6 in SDP
• RFC2806 TEL URI

• RFC3581 NAT,rport
• RFC4028 Session Timer
• Outbound Proxy
• DNS SRV/ A Query/NATPR Query
• SIP Trunk
• Early Media/Early Answer
• NAT:STUN, Static/Dynamic NAT

Maintenance

• SNMP v1/v2/v3
• TR069, TR181
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog(Emerg,alert, critical,error warning,notice,info, debug)
• Ping/Tracert Test
• Network Capture
• Outward Test(GR909)
• NTP/Daylight Saving Time
• IVR local Maintenance
• Cloud-based Management

Network

• PPPoE
• DHCP Client
• OpenVPN
• Ping / Tracert
• Static / Dynamic IP
• DHCP Option 66,120,121

• IPv4, TCP, UDP,TFTP, FTP, ARP,RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS

Software Features

• Port Group
• Speed Dial
• Web / Telnet ACL
• Action URL
• PPPoE/IPv4/IPv6
• Digitmap
• Routing Rules based Prefixes
• Caller/Called Number Manipulation

Environment

• Power Supply : 100-240VAC, 50-60 Hz@DC12V 1A
• Power Consumption: 5W
• Operating Temperature: 0 ℃ ~ 45 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity: 10%-90% Non-Condensing
• Dimensions (L/W/H): 195*136*35mm
• Unit Weight: : 0.6kg
• Compliance: CE, FCC
