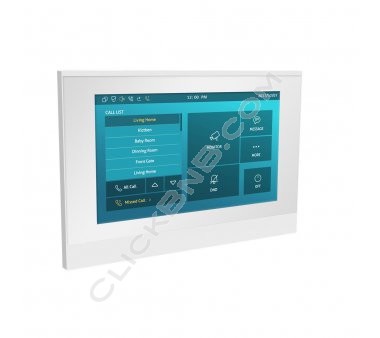

Akuvox C313S - SIP Indoor Monitor

Akuvox C313S SIP Indoor Monitor

Physical and Power

• Front Panel : Plastic
• RAM / ROM : 64MB / 128MB
• Display : 7-inch TFT LCD
• Screen : 7-inch Capacitive Touch Screen
• RS485 Port : Support
• Relay Out : 1
• Bell In : 1
• I/O : 8
• Microphone : -58dB
• Speaker : 4Ω / 2W
• Ethernet Ports : 2XRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC Connector (if not using PoE)
• Installation : Wall-mounted & Desktop
• Dimension : 200.2 X 132.2 X 27.2mm
• Working Humidity : 10~90%
• Working Temperature : -10° ~ +45°C
• Storage Temperatur : -20°C

Touch Screen Display

• Display Mode : Normally white. Transmissive
• LCD Size : 7-inch (Diagonal)
• Resolution : 800x480
• Contrast Ratio : 500:1
• Luminance : 220 cd/m²
• Viewing Angle : 50° Left , 50° Right, 40° Upper, 50° Lower
• Touch Screen : Projected capacitive


Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec : G.711a, G711μ, G.729
• Broadband audio codec : G.722
• DTMF : Out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation

Video

• Streaming formats : H264

Networking

• Protocols Support : IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

• Auto-Provisioning
• Web Management Portal
• Web-based packet dump
• Cobfiguration backup / restore
• Firmware upgrade
• System logs (include door access logs)

Applications Scenario

• Villas
• Apartement complexes
• Home automation system
• Modern interiors
